| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | CY8CPROTO-062S3-4343WCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Newark Part No. | 63AK1533 |
| Your Part Number | |
| Technical Datasheet |
4 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $78.480 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | CY8CPROTO-062S3-4343WCopy |
| Manufacturer Standard Lead Time | 23 weeks |
| Newark Part No. | 63AK1533 |
| Technical Datasheet | |
| Silicon Manufacturer | Cypress |
| Silicon Core Number | S25HL512T |
| Kit Application Type | Wireless Development |
| Application Sub Type | Bluetooth and WiFi |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+, Cortex-M4 |
| Silicon Family Name | PSoC 6 |
| Kit Contents | Prototyping Board S25HL512T, USB Type-A to Micro-B Cable, Manual |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

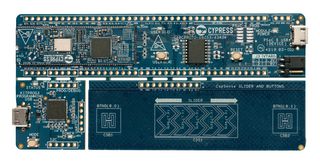

CY8CPROTO-062S3-4343W is a PSoC 62S3 Wi-Fi BT prototyping kit. The PSoC 62S3 Wi-Fi BT kit enables you to evaluate and develop your applications using the PSoC 62 Series MCU and CYW4343W WICED Wi-Fi/BT combo device. PSoC 6 MCU is Cypress’ latest, ultra-low-power PSoC specifically designed for wearables and IoT products. PSoC 6 MCU is a true programmable embedded system-on-chip, integrating a 150MHz ARM® Cortex®-M4 as the primary application processor, a 100MHz ARM Cortex®-M0+ that supports low-power operations, up to 2MB Flash and 1MB SRAM, Secure Digital Host Controller (SDHC) supporting SD/SDIO/eMMC interfaces, CapSense® touch-sensing, and programmable analogue and digital peripherals that allow higher flexibility, in-field tuning of the design, and faster time-to-market.
- PSoC™ 62 MCU with 512KB of flash memory, 256KB of SRAM memory
- LBEE5KL1DX module based on the CYW4343W combo device (802.11b/g/n, single-band 2.4GHz + Bluetooth)
- Industry-leading CAPSENSE™ with touch buttons and slider
- On-board debugger/programmer with KitProg3
- 512Mbit quad-SPI NOR flash
- KitProg3 on-board SWD programmer/debugger, USB-UART and USB-I2C bridge functionality
- Micro-B connector for PSoC 6 MCU USB device interface
- 1.8V and 3.3V operation of PSoC 6 MCU is supported
- One user LED, one user button, and a reset button for PSoC 6 MCU
- One mode selection button and one status LED for KitProg3
Contents
PSoC 62S3 Wi-Fi BT prototyping board, USB type-A to micro-B cable, Quick start guide.
Technical Specifications
| Silicon Manufacturer | Cypress |
|---|---|
| Kit Application Type | Wireless Development |
| Core Architecture | ARM |
| Silicon Family Name | PSoC 6 |
| Product Range | - |
| Silicon Core Number | S25HL512T |
|---|---|
| Application Sub Type | Bluetooth and WiFi |
| Core Sub-Architecture | Cortex-M0+, Cortex-M4 |
| Kit Contents | Prototyping Board S25HL512T, USB Type-A to Micro-B Cable, Manual |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | 5A992C |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
