F1225R12KT4GBOSA1

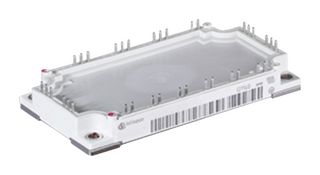

IGBT Module, Twelve Pack, 25 A, 1.85 V, 160 W, 175 °C, Module
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoF1225R12KT4GBOSA1
Newark Part No.39AH8845
Product RangeEconoPACK3
Technical Datasheet
10 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $132.040 |
| 5+ | $120.040 |
| 10+ | $108.060 |
Price for:Each
Minimum: 1
Multiple: 1
$132.04
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoF1225R12KT4GBOSA1
Newark Part No.39AH8845
Product RangeEconoPACK3
Technical Datasheet
IGBT ConfigurationTwelve Pack
DC Collector Current25A
Continuous Collector Current25A
Collector Emitter Saturation Voltage1.85V
Collector Emitter Saturation Voltage Vce(on)1.85V
Power Dissipation160W
Power Dissipation Pd160W
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature, Tj Max175°C
Operating Temperature Max175°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK3
SVHCNo SVHC (21-Jan-2025)
