FF400R17KE4EHOSA1
IGBT Module, Dual, Common Emitter, 400 A, 1.95 V, 150 °C, Module

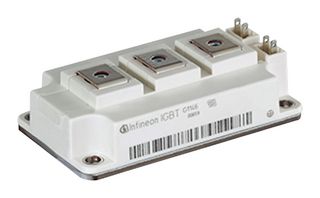

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFF400R17KE4EHOSA1
Newark Part No.93AC7007
Product Range62mm C Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
| Quantity | Price |
|---|---|
| 1+ | $220.960 |
Price for:Each
Minimum: 1
Multiple: 1
$220.96
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFF400R17KE4EHOSA1
Newark Part No.93AC7007
Product Range62mm C Series
Technical Datasheet
IGBT ConfigurationDual, Common Emitter
Continuous Collector Current400A
DC Collector Current400A
Collector Emitter Saturation Voltage Vce(on)1.95V
Collector Emitter Saturation Voltage1.95V
Power Dissipation-
Operating Temperature Max150°C
Junction Temperature, Tj Max150°C
Collector Emitter Voltage V(br)ceo1.7kV
Transistor Case StyleModule
IGBT TerminationStud
Collector Emitter Voltage Max1.7kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product Range62mm C Series
SVHCTo Be Advised
Technical Specifications
IGBT Configuration
Dual, Common Emitter
DC Collector Current
400A
Collector Emitter Saturation Voltage
1.95V
Operating Temperature Max
150°C
Collector Emitter Voltage V(br)ceo
1.7kV
IGBT Termination
Stud
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
62mm C Series
Continuous Collector Current
400A
Collector Emitter Saturation Voltage Vce(on)
1.95V
Power Dissipation
-
Junction Temperature, Tj Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.7kV
Transistor Mounting
Panel
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
