FP75R17N3E4B20BPSA1
IGBT Module, 75 A, 1.95 V, 150 °C, Module

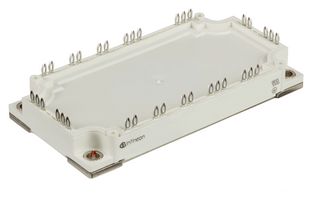

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFP75R17N3E4B20BPSA1Copy
Newark Part No.29AM6892
Product RangeEconoPIM 3 Series
Your Part Number
20 In Stock
Need more?
4 US Stock delivery in 2-3 Business Days Order before 6pm EST Standard Shipping
16 UK Stock available for delivery in 4-6 Business Days
Order before 6pm
| Quantity | Price |
|---|---|
| 1+ | $147.800 |
| 5+ | $143.840 |
| 10+ | $139.710 |
| 30+ | $137.630 |
| 50+ | $135.610 |
| 100+ | $127.480 |
Price for:Each
Minimum: 1
Multiple: 1
$147.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFP75R17N3E4B20BPSA1Copy
Newark Part No.29AM6892
Product RangeEconoPIM 3 Series
Technical Datasheet
IGBT Configuration-
Continuous Collector Current75A
Collector Emitter Saturation Voltage1.95V
Power Dissipation-
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.7kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPIM 3 Series
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
IGBT Configuration
-
Collector Emitter Saturation Voltage
1.95V
Operating Temperature Max
150°C
IGBT Termination
Press Fit
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
EconoPIM 3 Series
Continuous Collector Current
75A
Power Dissipation
-
Transistor Case Style
Module
Collector Emitter Voltage Max
1.7kV
Transistor Mounting
Panel
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
