FS75R12KE3BPSA1

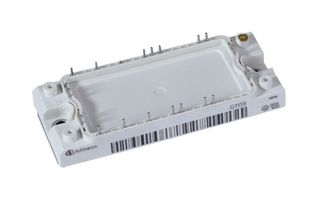

IGBT Module, Six Pack [Full Bridge], 105 A, 1.7 V, 350 W, 150 °C, Module
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS75R12KE3BPSA1
Newark Part No.58AJ2190
Product RangeEconoPACK 2
Technical Datasheet
141 In Stock
Need more?
2 Delivery in 1-3 Business Days(US stock)
139 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $123.530 |
| 5+ | $111.650 |
| 10+ | $99.760 |
Price for:Each
Minimum: 1
Multiple: 1
$123.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS75R12KE3BPSA1
Newark Part No.58AJ2190
Product RangeEconoPACK 2
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
DC Collector Current105A
Continuous Collector Current105A
Collector Emitter Saturation Voltage Vce(on)1.7V
Collector Emitter Saturation Voltage1.7V
Power Dissipation350W
Power Dissipation Pd350W
Junction Temperature, Tj Max150°C
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationSolder
Collector Emitter Voltage Max1.2kV
Collector Emitter Voltage V(br)ceo1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 2
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
IGBT Configuration
Six Pack [Full Bridge]
Continuous Collector Current
105A
Collector Emitter Saturation Voltage
1.7V
Power Dissipation Pd
350W
Operating Temperature Max
150°C
IGBT Termination
Solder
Collector Emitter Voltage V(br)ceo
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (21-Jan-2025)
DC Collector Current
105A
Collector Emitter Saturation Voltage Vce(on)
1.7V
Power Dissipation
350W
Junction Temperature, Tj Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
IGBT Technology
IGBT 3 [Trench/Field Stop]
Product Range
EconoPACK 2
