IM12B15CC1XKMA1

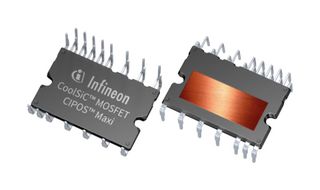

Intelligent Power Module (IPM), IGBT, 1.2 kV, 22 A, 2.5 kV, DIP, CIPOS
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | IM12B15CC1XKMA1Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Newark Part No. | 13AM4772 |
| Product Range | CIPOS Maxi Series |
| Your Part Number | |
| Technical Datasheet |
100 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $32.320 |
| 5+ | $28.590 |
| 10+ | $24.870 |
| 25+ | $24.030 |
| 50+ | $23.200 |
| 100+ | $22.370 |
| 250+ | $21.920 |
Price for:Each
Minimum: 1
Multiple: 1
$32.32
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | IM12B15CC1XKMA1Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Newark Part No. | 13AM4772 |
| Product Range | CIPOS Maxi Series |
| Technical Datasheet | |
| IPM Power Device | IGBT |
| Voltage Rating (Vces / Vdss) | 1.2kV |
| Current Rating (Ic / Id) | 22A |
| Isolation Voltage | 2.5kV |
| IPM Case Style | DIP |
| IPM Series | CIPOS |
| Product Range | CIPOS Maxi Series |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
IM12B15CC1XKMA1 is a CIPOS™ Maxi 1200 V, 15 A three-phase intelligent power module. CIPOS™ Maxi 1200V, 15A three-phase IGBT7 based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including industrial drives, fans and pumps, HVAC, active filters, and etc. Typical applications include commercial HVAC, general purpose motor drive - variating frequency and voltage, heating ventilation and air conditioning (HVAC), industrial automation, motor control.
- Based on 1200V TRENCHSTOP™ IGBT7
- Power rating up to 3000W at 10kHz
- Rugged 1200V SOI gate driver
- Over current shutdown, under-voltage lockout
- All 6 switches turn off during protection
- Temperature monitoring
- Cross-conduction prevention
- UL-certified
- Excellent thermal performance, Fit for space-constrained applications
- Compact footprint and low switching losses
Technical Specifications
| IPM Power Device | IGBT |
|---|---|
| Current Rating (Ic / Id) | 22A |
| IPM Case Style | DIP |
| Product Range | CIPOS Maxi Series |
| Voltage Rating (Vces / Vdss) | 1.2kV |
|---|---|
| Isolation Voltage | 2.5kV |
| IPM Series | CIPOS |
| SVHC | No SVHC (25-Jun-2025) |
