TLE5012BE5000XUMA1

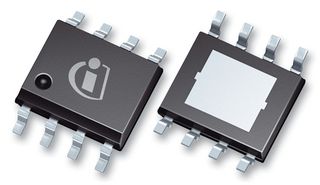

GMR ANGLE SENSOR, 5.5V, SOIC-8
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoTLE5012BE5000XUMA1Copy
Newark Part No.
Re-Reel60AC3884
Cut Tape60AC3884
Your Part Number
150 In Stock
Need more?
Same day shipping
Order before 6pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $2.540 | $2.54 |
| Total Price | $2.54 | ||
Cut Tape & Re-Reel
| Quantity | Price | Promotional price |
|---|---|---|
| 1+ | $5.860 | $2.540 |
| 10+ | $5.020 | $2.540 |
| 25+ | $4.740 | $2.540 |
| 50+ | $4.550 | $2.540 |
| 100+ | $4.370 | $2.540 |
| 250+ | $4.150 | $2.540 |
| 500+ | $3.920 | $2.540 |
| 1000+ | $3.810 | $2.540 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoTLE5012BE5000XUMA1Copy
Newark Part No.
Re-Reel60AC3884
Cut Tape60AC3884
Technical Datasheet
Magnetoresistive Sensor TechnologyGiant Magneto Resistance Sensor (GMR)
Sensor TypeGMR Angle Sensor
Magnetoresistive Sensor TechnologyGiant Magneto Resistance Sensor (GMR)
Magnetic Field Min0.03T
Magnetoresistive Sensor Type-
Magnetic Field Max0.05T
Supply Voltage Min3V
Supply Voltage Max5.5V
Sensor Case / PackageSOIC
Sensor Case StyleSOIC
No. of Pins8Pins
Output InterfaceOpen-Drain, Push-Pull
Operating Temperature Min-40°C
Operating Temperature Max150°C
Product Range-
Qualification-
SVHCNo SVHC (25-Jun-2025)
Product Overview
Automotive qualified GMR-based angle sensor that detects the orientation of a magnetic field.
- Giant Magneto Resistance (GMR) based principle
- Integrated magnetic field sensing for angle measurement
- 360° angle measurement with revolution counter and angle speed measurement
- Two separate highly accurate single bit SD-ADC
- 15bit representation of absolute angle value on the output (resolution of 0.01°)
- 16bit representation of sine/cosine values on the interface
- Bi-directional SSC Interface up to 8Mbit/s
- Supports Safety Integrity Level (SIL) with diagnostic functions and status information
- Output pins can be configured (programmed or pre-configured) as push-pull or open-drain
Technical Specifications
Magnetoresistive Sensor Technology
Giant Magneto Resistance Sensor (GMR)
Magnetoresistive Sensor Technology
Giant Magneto Resistance Sensor (GMR)
Magnetoresistive Sensor Type
-
Supply Voltage Min
3V
Sensor Case / Package
SOIC
No. of Pins
8Pins
Operating Temperature Min
-40°C
Product Range
-
MSL
MSL 3 - 168 hours
Sensor Type
GMR Angle Sensor
Magnetic Field Min
0.03T
Magnetic Field Max
0.05T
Supply Voltage Max
5.5V
Sensor Case Style
SOIC
Output Interface
Open-Drain, Push-Pull
Operating Temperature Max
150°C
Qualification
-
SVHC
No SVHC (25-Jun-2025)
