290A
Isolation Amplifier, 1 Amplifiers, 1.5 kV, 8V to 15.5V, DIP, 12 Pins, 2.5 kHz

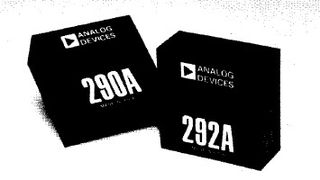

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
Product Information
ManufacturerINTRONICS
Manufacturer Part No290A
Newark Part No.92F581
Technical Datasheet
No. of Amplifiers1Amplifiers
Isolation Voltage1.5kV
Supply Voltage Range8V to 15.5V
IC Case / PackageDIP
No. of Pins12Pins
Gain Bandwidth Product2.5kHz
Gain Non-Linearity Max0.1%
Isolation TypeMagnetic
IC MountingThrough Hole
Operating Temperature Min-25°C
Operating Temperature Max85°C
Product Range-
MSL-
SVHCNo SVHC (17-Dec-2015)
Input Offset Voltage5mV
Amplifier Case StyleDIP
Bandwidth2.5kHz
No. of Amplifiers1 Amplifier
Technical Specifications
No. of Amplifiers
1Amplifiers
Supply Voltage Range
8V to 15.5V
No. of Pins
12Pins
Gain Non-Linearity Max
0.1%
IC Mounting
Through Hole
Operating Temperature Max
85°C
MSL
-
Input Offset Voltage
5mV
Bandwidth
2.5kHz
Isolation Voltage
1.5kV
IC Case / Package
DIP
Gain Bandwidth Product
2.5kHz
Isolation Type
Magnetic
Operating Temperature Min
-25°C
Product Range
-
SVHC
No SVHC (17-Dec-2015)
Amplifier Case Style
DIP
No. of Amplifiers
1 Amplifier
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2015)
