192926-0510
Circular Connector, Circular Industrial, Trident Ringlock Series, Cable Mount Plug, 8 Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part No192926-0510
Newark Part No.93F8994
Product RangeTrident Ringlock Series
Also Known AsTR1208PFS1NB
Technical Datasheet
1,786 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.990 |
| 5+ | $7.990 |
| 10+ | $7.990 |
| 25+ | $7.990 |
| 50+ | $7.990 |
| 100+ | $7.990 |
| 250+ | $7.990 |
Price for:Each
Minimum: 1
Multiple: 1
$7.99
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part No192926-0510
Newark Part No.93F8994
Product RangeTrident Ringlock Series
Also Known AsTR1208PFS1NB
Technical Datasheet
Connector TypeCircular Industrial
Product RangeTrident Ringlock Series
Circular Connector Shell StyleCable Mount Plug
No. of Contacts8Contacts
Circular Contact TypeCrimp Socket - Contacts Not Supplied
Coupling StyleBayonet
Connector Body MaterialNylon (Polyamide) Body
Connector Body Plating-
Contact Material-
Contact Plating-
SVHCTo Be Advised
Product Overview

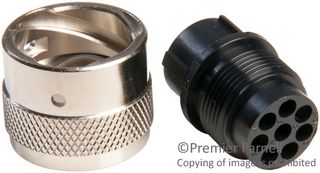

The 192926-0510 is a 8-contact Trident Ringlock Circular Reversed Plug with black nylon body (UL94V-0) and nickel plated copper alloy coupling ring. This TR1208PFS1NB cable mount standard trident ringlock series pin contact plug features stainless steel bayonet pins, nickel plated copper alloy bayonet pins support band. Accepts all Trident signal and co-axial contacts.
- Water sealed to meet IP65
- Rugged metal coupling
- Integrally molded combined plastic
- Up to 13A contact current rating
- 5000MΩ at 500VDC Insulation resistance
- UL94V-0 Flammability rating
- -55 to +105°C Operating temperature range
Applications
Industrial, Robotics
Technical Specifications
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Plug
Circular Contact Type
Crimp Socket - Contacts Not Supplied
Connector Body Material
Nylon (Polyamide) Body
Contact Material
-
SVHC
To Be Advised
Product Range
Trident Ringlock Series
No. of Contacts
8Contacts
Coupling Style
Bayonet
Connector Body Plating
-
Contact Plating
-
