DAM15P

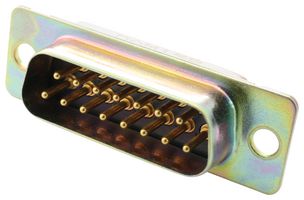

D Sub Connector, 15 Contacts, Plug, Solder, DA, DAM Series, Steel Body
Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDAM15P
Newark Part No.12C9570
Product RangeDAM Series
Technical Datasheet
139 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $23.060 |
| 5+ | $21.330 |
| 10+ | $19.600 |
| 25+ | $18.370 |
| 50+ | $17.490 |
| 100+ | $16.660 |
| 250+ | $15.610 |
Price for:Each
Minimum: 1
Multiple: 1
$23.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDAM15P
Newark Part No.12C9570
Product RangeDAM Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeDAM Series
No. of Contacts15Contacts
D Sub Shell SizeDA
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCTo Be Advised
Product Overview
High density D-subminiature 15 contact plug used for a wide range of applications in aerospace & defence, industrial and transportation end markets.
- DA shell size and supports solder termination
- Copper alloy contact with gold flash finish
- Steel shell with tin/nickel yellow chromate over cadmium or zinc
- Thermoplastic (glass filled nylon) insulator
Technical Specifications
D Sub Connector Type
Standard
Product Range
DAM Series
D Sub Shell Size
DA
Connector Mounting
Through Hole Mount
Contact Plating
Gold Plated Contacts
SVHC
To Be Advised
Gender
Plug
No. of Contacts
15Contacts
Contact Termination Type
Solder
Contact Material
Copper Alloy
Connector Body Material
Steel Body
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
