DBMM9W4S
Combination Layout D Sub Connector, 680M Series, DB-9W4, Receptacle, 9 Contacts

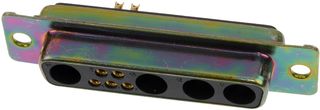

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDBMM9W4S
Newark Part No.92B8902
Product Range680M Series
Technical Datasheet
30 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $27.290 |
| 5+ | $25.230 |
| 10+ | $23.190 |
| 25+ | $21.730 |
| 50+ | $21.130 |
| 100+ | $20.530 |
| 250+ | $19.560 |
Price for:Each
Minimum: 1
Multiple: 1
$27.29
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDBMM9W4S
Newark Part No.92B8902
Product Range680M Series
Technical Datasheet
Product Range680M Series
Insert ArrangementDB-9W4
No. of Signal Contacts5Contacts
No. of Contacts9Contacts
No. of Power Positions4
Contact Type5 Signal, 4 Power
Contact Termination TypeSolder
D Sub Shell SizeDB
Connector MountingThrough Hole Mount
Connector Body MaterialMetal Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The DBMM9W4S is a 9-way Solder Receptacle with black thermoplastic insulator and zinc-plated copper shell. The Combo D® series connector compatible with DB shell. It accepts 26 to 8AWG wire range.
- High reliability
- 500VAC at sea level Dielectric withstanding voltage
- -55 to +150°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
680M Series
Gender
Receptacle
No. of Contacts
9Contacts
Contact Type
5 Signal, 4 Power
D Sub Shell Size
DB
Connector Body Material
Metal Body
Contact Plating
Gold Plated Contacts
Insert Arrangement
DB-9W4
No. of Signal Contacts
5Contacts
No. of Power Positions
4
Contact Termination Type
Solder
Connector Mounting
Through Hole Mount
Contact Material
Copper Alloy
SVHC
To Be Advised
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
