DDMM50P
D Sub Connector, 50 Contacts, Plug, Solder, DD, DDMM Series, Metal Body

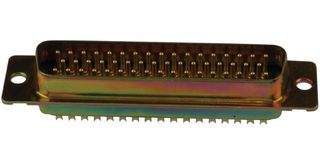

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDDMM50P
Newark Part No.82H6557
Product RangeDDMM Series
Technical Datasheet
105 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $71.200 |
| 5+ | $65.850 |
| 10+ | $60.510 |
| 25+ | $56.720 |
| 50+ | $54.020 |
| 100+ | $51.450 |
| 250+ | $48.650 |
Price for:Each
Minimum: 1
Multiple: 1
$71.20
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDDMM50P
Newark Part No.82H6557
Product RangeDDMM Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeDDMM Series
No. of Contacts50Contacts
D Sub Shell SizeDD
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialMetal Body
SVHCTo Be Advised
Product Overview
The DDMM50P is a 50-way D-sub Cup Connector with gold over nickel plated copper alloy contacts and yellow chromate over zinc plated steel shell. The D*M series 051526-0000 high reliable D-sub plug features black thermoplastic, type PCT UL94V-0 insulator and supports solder contact termination. It accepts 20 to 28AWG wire.
- 7.5A Maximum rated current
- 7.5mΩ Maximum contact resistance
- 1000VAC at sea level Dielectric withstanding voltage
- -55/+150°C Operating temperature range
Applications
Defence, Military & Aerospace
Technical Specifications
D Sub Connector Type
Standard
Product Range
DDMM Series
D Sub Shell Size
DD
Connector Mounting
Through Hole Mount
Contact Plating
Gold Plated Contacts
SVHC
To Be Advised
Gender
Plug
No. of Contacts
50Contacts
Contact Termination Type
Solder
Contact Material
Copper Alloy
Connector Body Material
Metal Body
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
