48-2-RB-N-BK-B
Industrial Pushbutton Switch, 48-EM Series, 13.6 mm, SPST-NO-DB, Maintained, Round Domed, Black

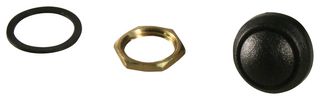

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITW SWITCHES
Manufacturer Part No48-2-RB-N-BK-B
Newark Part No.21K5016
Product Range48-EM Series
Technical Datasheet
2,728 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $10.550 |
| 5+ | $10.550 |
| 10+ | $9.740 |
| 25+ | $9.740 |
| 50+ | $9.740 |
Price for:Each
Minimum: 1
Multiple: 1
$10.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITW SWITCHES
Manufacturer Part No48-2-RB-N-BK-B
Newark Part No.21K5016
Product Range48-EM Series
Technical Datasheet
Product Range48-EM Series
Panel Cutout Diameter13.6mm
Contact ConfigurationSPST-NO-DB
Switch OperationMaintained
Contact Voltage DC Nom48V
Contact Current Max400mA
Pushbutton Actuator StyleRound Domed
Actuator / Cap ColourBlack
Contact Current AC Max-
Contact Voltage VAC-
Contact Current DC Max250mA
Contact Voltage VDC12V
IP RatingIP67
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (07-Nov-2024)
Product Overview
The 48-2-RB-N-BK-B is a single-pole single-throw (SPST) Flex-tech Miniature Sealed Pushbutton Switch with solder tabs terminal, maintained function and square black bezel. This rugged series 48 switch offers black button, bushing button and gold plated contact.
- Long life
- Electro-mechanical
- 0.09" Button travel (nominal)
- 3N/306g Operating force (nominal)
- IP67 Protection rating (panel sealed)
Applications
Medical, Industrial
Technical Specifications
Product Range
48-EM Series
Contact Configuration
SPST-NO-DB
Contact Voltage DC Nom
48V
Pushbutton Actuator Style
Round Domed
Contact Current AC Max
-
Contact Current DC Max
250mA
IP Rating
IP67
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Panel Cutout Diameter
13.6mm
Switch Operation
Maintained
Contact Current Max
400mA
Actuator / Cap Colour
Black
Contact Voltage VAC
-
Contact Voltage VDC
12V
Switch Mounting
Panel Mount
Illumination Color
Non Illuminated
SVHC
No SVHC (07-Nov-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
