105-0604-001
Test Connector, Tip Jack, 2mm Standard Tip Plug, 5.7 kV, 10 A, Green

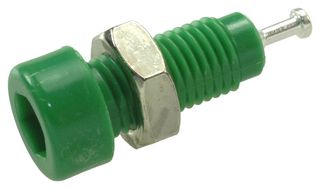

Image is for illustrative purposes only. Please refer to product description.
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No105-0604-001
Newark Part No.39F881
Technical Datasheet
275 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.090 |
| 10+ | $2.760 |
| 25+ | $2.670 |
| 50+ | $2.550 |
| 100+ | $2.370 |
| 250+ | $2.240 |
| 500+ | $2.050 |
| 1000+ | $1.910 |
Price for:Each
Minimum: 1
Multiple: 1
$3.09
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No105-0604-001
Newark Part No.39F881
Technical Datasheet
Connector TypeTip Jack
For Use With2mm Standard Tip Plug
Breakdown Voltage5.7kV
Current Rating10A
Wire Size AWG Max-
Insulator ColourGreen
Product Range-
SVHCLead
Product Overview
The 105-0604-001 is an insulated standard Tip Jack made of nylon 6/6. It has silver-plated brass with wrap around beryllium copper spring contact and nickel-plated nut (unassembled).
- Machined contact with turret terminal
- Hex socket head 0.188" (4.77mm) for ease in mounting
- Closed entry blocks access of probes greater than 0.085" (2.16mm)
- Nylon UL approved for self extinguishing
- 0.01Ω Maximum contact resistance
- 2pF Nominal capacitance (contact-to-panel)
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Tip Jack
Breakdown Voltage
5.7kV
Wire Size AWG Max
-
Product Range
-
For Use With
2mm Standard Tip Plug
Current Rating
10A
Insulator Colour
Green
SVHC
Lead
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
