KB224

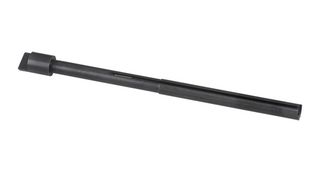

Wire Wrap Tool, Bit, Standard, 22AWG to 24AWG
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
| Quantity | Price |
|---|---|
| 1+ | $105.010 |
Price for:Each
Minimum: 1
Multiple: 1
$105.01
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerJONARD TOOLS
Manufacturer Part NoKB224
Newark Part No.10F7513
Technical Datasheet
Wrap Tool TypeBit
Wire Wrap StyleStandard
Terminal Diagonal Min0.054"
Terminal Diagonal Max0.073"
Wire Size (AWG)24AWG to 22AWG
Wire Size AWG Min24AWG
Wire Size AWG Max22AWG
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The KB224 is a standard regular Wire Wrap Bit accepts 22 to 24AWG wire gauge.
Applications
Industrial
Technical Specifications
Wrap Tool Type
Bit
Terminal Diagonal Min
0.054"
Wire Size (AWG)
24AWG to 22AWG
Wire Size AWG Max
22AWG
SVHC
No SVHC (21-Jan-2025)
Wire Wrap Style
Standard
Terminal Diagonal Max
0.073"
Wire Size AWG Min
24AWG
Product Range
-
Technical Docs (2)
Alternatives for KB224
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
