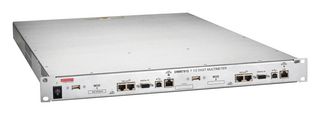

DMM7512
Bench Digital Multimeter, 7.5, LAN / LXI, USB, 1 Gohm
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 1+ | $14,596.200 |
Price for:Each
Minimum: 1
Multiple: 1
$14,596.20
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKEITHLEY
Manufacturer Part NoDMM7512
Newark Part No.84AC5800
Technical Datasheet
No. of Digits7.5
DMM ConnectivityLAN / LXI, USB
Current Measure AC Max-
Voltage Measure AC Max-
Resistance Measure Max1Gohm
Product Range-
Current Measure DC Max3A
Voltage Measure DC Max1kV
Manufacturer Warranty1 Year
DMM FunctionsDC Current, AC/DC Voltage, Resistance
Plug Type-
SVHCTo Be Advised
Product Overview
- Dual channel 7½-digit sampling multimeter
- Capture waveforms or identify transients with two 1Mps 18-bit digitizers
- Trigger a waveform measurement on a signal level, rising or falling edge, window, digital trigger
- Store up to 27.5M timestamped readings on a waveform
- Basic one-year DC Voltage accuracy as low as 14 ppm
- 10nV, 0.1µohm and 1pA sensitivities for making high resolution low level measurements
- High accuracy, low resistance measurements with offset compensated ohms, four-wire measurement
- Auto-calibration improves accuracy and stability by minimizing temperature and time drift
- USBTMC-compliant and LAN LXI-compliant interfaces
- Tight synchronization between the two DMMs using TSP-Link® communication
Contents
Dual channel 7 ½-digit sampling multimeter, Test lead kit, LAN crossover cable, Shielded crossover cable with RJ-45 Connector, Green and yellow ground cable, 1U high fixed rack mount kit, Safety precautions document, DMM7512 7½-digit multimeter instrument information.
Technical Specifications
No. of Digits
7.5
Current Measure AC Max
-
Resistance Measure Max
1Gohm
Current Measure DC Max
3A
Manufacturer Warranty
1 Year
Plug Type
-
DMM Connectivity
LAN / LXI, USB
Voltage Measure AC Max
-
Product Range
-
Voltage Measure DC Max
1kV
DMM Functions
DC Current, AC/DC Voltage, Resistance
SVHC
To Be Advised
