N2843A

N2843A is a high-impedance passive probes designed for use with oscilloscopes. The probe can be adjusted for low-frequency compensation and high-frequency compensation. For the best measurements you should compensate your probe to match its characteristics to the oscilloscope. The N2843A is a replacement of the N2890A. The old and new replacements are 100% form, fit, function, and price equivalent to the products they replace.

• Bandwidth DC to 500MHz
• Cable length 1.2m
• Rise time 700ps
• Attenuation ratio 10:1
• Input resistance 10Mohm (when terminated into 1Mohm)
• Maximum input 300VRMS (or <gt/>400Vpk) CAT I and CAT II
• Compatible with Keysight InfiniiVision and Infiniium series oscilloscopes with 1Mohm input
• Probe ID

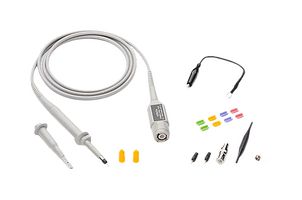

Contents

Retractable hook x 1, Spare probe tip x 2, Ground spring x 1, Insulating cap x 1, IC insulating cap x 1, BNC adapter x 1, Alligator ground lead (12 cm) x 1, Adjustment tool x 1, Channel identification tags 2 each color (green, yellow, purple, pink) x 8.
