                      U2751A

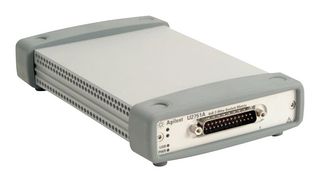

                      Data Acquisition Unit, 32 Channels, 12 V, 2 A, 45 MHz, U2700A Series

                      KEYSIGHT TECHNOLOGIES U2751A
                      KEYSIGHT TECHNOLOGIES U2751A
                      KEYSIGHT TECHNOLOGIES U2751A
                      KEYSIGHT TECHNOLOGIES U2751A
                      KEYSIGHT TECHNOLOGIES U2751A
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerKEYSIGHT TECHNOLOGIES
                      Manufacturer Part NoU2751A
                      Newark Part No.05N1305
                      Product RangeU2700A Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerKEYSIGHT TECHNOLOGIES
                      Manufacturer Part NoU2751A
                      Newark Part No.05N1305
                      Product RangeU2700A Series
                      Technical Datasheet

                      Data Sheet

                      No. of Channels32Channels
                      Sampling Rate-
                      Input Voltage Max42VDC
                      Input Current Max2A
                      Bandwidth45MHz
                      External Height44mm
                      External Width120mm
                      External Depth183mm
                      Product RangeU2700A Series
                      SVHCNo SVHC (17-Jan-2023)

                      Product Overview

                      U2751A is a 4x8 2-wire USB modular switch matrix. It offers a flexible connection path between the device under test and the test equipment, thus allowing different instruments to be connected to multiple points on the device under test at the same time. This instrument is able to support measurements at a high bandwidth of up to 45MHz. It uses the common non-proprietary standard high-speed USB 2.0 interface that provides ease of connectivity allowing users to set up and configure their tests swiftly with the plug and play feature. It can function as a standalone module or as a modular device in the U2781A USB Modular Product Chassis, providing expansion capabilities and compact solution when used with the other modules in the USB Modular Instruments and DAQ family.

                      • 4x8 2-wire matrix configuration
                      • Maximum 42V/2A (when used standalone)
                      • (-)30dB crosstalk and <lt/>-3dB insertion loss at 45MHz operation
                      • 4ms max switching time
                      • DB25 connector
                      • High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft® Windows® operating systems)
                      • Standalone and modular capabilities

                      Technical Specifications

                      No. of Channels

                      32Channels

                      Input Voltage Max

                      42VDC

                      Bandwidth

                      45MHz

                      External Width

                      120mm

                      Product Range

                      U2700A Series

                      Sampling Rate

                      -

                      Input Current Max

                      2A

                      External Height

                      44mm

                      External Depth

                      183mm

                      SVHC

                      No SVHC (17-Jan-2023)
