                      Print Page

                      8620

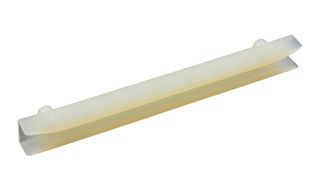

                      Enclosure Accessory, PC Board Guide

                      KEYSTONE 8620
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerKEYSTONE
                      Manufacturer Part No8620
                      Newark Part No.90B0650
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 10 week(s)
                      QuantityPrice
                      1000+$1.110
                      5000+$0.891
                      Price for:Each
                      Minimum: 1000
                      Multiple: 100
                      $1,110.00
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerKEYSTONE
                      Manufacturer Part No8620
                      Newark Part No.90B0650
                      Technical Datasheet

                      Data Sheet

                      Accessory TypePC Board Guide
                      For Use WithHorizontally or Vertically and snap into 3.2mm diameter holes
                      Guide Width6.2mm
                      Guide Length63.5mm
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      The 8620 is a horizontal type PC Board Guide for use with horizontally and snap into 3.2mm diameter holes. Made of sturdy nylon construction and mounts into chassis without tools. Narrow width allows maximum density and optimum airflow.

                      • Simple press-fit, secure installation
                      • Assures proper alignment of board
                      • Quick and easy installation of board
                      • No special tools required to install

                      Applications

                      Maintenance & Repair

                      Technical Specifications

                      Accessory Type

                      PC Board Guide

                      Guide Width

                      6.2mm

                      Product Range

                      -

                      For Use With

                      Horizontally or Vertically and snap into 3.2mm diameter holes

                      Guide Length

                      63.5mm

                      SVHC

                      No SVHC (21-Jan-2025)

                      Technical Docs (2)

                      Drawing EN

                      Technical Data Sheet EN

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate
