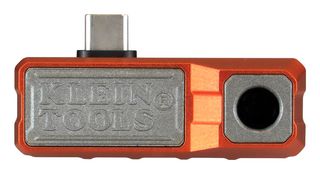

TI220
Thermal Imager, Android, -20 °C, 400 °C, 10800 Pixels, 0.06 K, 50° x 50°
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Delivery estimated post order confirmations.You will be charged on despatch.
| Quantity | Price |
|---|---|
| 1+ | $617.140 |
Price for:Each
Minimum: 1
Multiple: 1
$617.14
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKLEIN TOOLS
Manufacturer Part NoTI220
Newark Part No.62AK6206
Technical Datasheet
Temperature Min-20°C
Temperature Max400°C
IR Resolution10800 Pixels
Thermal Sensitivity (NETD)0.06K
Field of View (H X V)50° x 50°
IR Focus Distance Min-
Image Capture Frequency9Hz
Manufacturer Warranty2 Years
Product Range-
SVHCTo Be Advised
Product Overview
TI220 is a thermal imager for Android® devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager Android® App.
- Spectral range from 8 to 14μm
- Maximum frames per second <9Hz, FoV 50°, fixed focus
- JPG/MP4 image/video formats
- Features touch screen temperature, high/low temperatures, and differential temperature readout
- View temperature ranges from -4 to 752°F in three color palettes; ironbow, rainbow, or grayscale
- Includes high/low temperature alarms to monitor systems
- Compatible with most Android® devices versions 6.0 or higher with USB-C or micro-USB connectors
- Thermal Imager Android® App is available for free in Google Play™ store
- Durable 6.6foot (2m) drop test protection
- Powered from external device
Contents
Thermal Imager, USB-C connector, Micro-USB connector/adapter, Hard storage case with carabiner, Instructions.
Technical Specifications
Temperature Min
-20°C
IR Resolution
10800 Pixels
Field of View (H X V)
50° x 50°
Image Capture Frequency
9Hz
Product Range
-
Temperature Max
400°C
Thermal Sensitivity (NETD)
0.06K
IR Focus Distance Min
-
Manufacturer Warranty
2 Years
SVHC
To Be Advised
