NB20N00823JBA
NTC THERMISTOR, FULL REEL

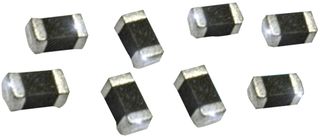

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | KYOCERA AVX |
|---|---|
| Manufacturer Part No | NB20N00823JBACopy |
| Manufacturer Standard Lead Time | 27 weeks |
| Newark Part No. | 53J7120 |
| Product Range | NB20 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 27 week(s)
| Quantity | Price |
|---|---|
| 3000+ | $0.501 |
| 6000+ | $0.491 |
Price for:Each (Supplied on Full Reel)
Minimum: 3000
Multiple: 3000
$1,503.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | KYOCERA AVX |
|---|---|
| Manufacturer Part No | NB20N00823JBACopy |
| Manufacturer Standard Lead Time | 27 weeks |
| Newark Part No. | 53J7120 |
| Product Range | NB20 Series |
| Technical Datasheet | |
| Thermistor Type | NTC |
| Resistance (25°C) | 82kohm |
| Thermistor Mounting | SMD |
| Resistance Tolerance (25°C) | ± 5% |
| Product Range | NB20 Series |
| Thermistor Case Style | 1206 [3216 Metric] |
| NTC Mounting | Surface Mount |
| B-Constant | 4080K |
| Thermistor Terminals | - |
| B-Constant Tolerance | ± 3% |
| NTC Case Size | 1206 [3216 Metric] |
| Thermal Time Constant (in Air) | 7s |
| Probe Material | - |
| Probe Diameter | - |
| Lead Length | - |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 150°C |
| Qualification | AEC-Q200 |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (17-Jan-2023) |
Technical Specifications
| Thermistor Type | NTC |
|---|---|
| Thermistor Mounting | SMD |
| Product Range | NB20 Series |
| NTC Mounting | Surface Mount |
| Thermistor Terminals | - |
| NTC Case Size | 1206 [3216 Metric] |
| Probe Material | - |
| Lead Length | - |
| Operating Temperature Max | 150°C |
| Automotive Qualification Standard | - |
| Resistance (25°C) | 82kohm |
|---|---|
| Resistance Tolerance (25°C) | ± 5% |
| Thermistor Case Style | 1206 [3216 Metric] |
| B-Constant | 4080K |
| B-Constant Tolerance | ± 3% |
| Thermal Time Constant (in Air) | 7s |
| Probe Diameter | - |
| Operating Temperature Min | -55°C |
| Qualification | AEC-Q200 |
| SVHC | No SVHC (17-Jan-2023) |
Technical Docs (1)
Alternatives for NB20N00823JBA
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2023) |
