PT4 6X400-KNE (IEC)
RTD Sensor, Probe, Class B, -50 °C, 450 °C, Platinum
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoPT4 6X400-KNE (IEC)
Newark Part No.69C3769
Your Part Number
Technical Datasheet
1 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $166.180 |
| 10+ | $152.700 |
| 25+ | $150.780 |
| 50+ | $147.360 |
| 100+ | $138.500 |
| 250+ | $124.520 |
| 500+ | $111.130 |
Price for:Each
Minimum: 1
Multiple: 1
$166.18
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoPT4 6X400-KNE (IEC)
Newark Part No.69C3769
Technical Datasheet
RTD TypeProbe
Length400mm
RTD AccuracyClass B
External Diameter6mm
Probe Body MaterialStainless Steel
Measured Temperature Min-50°C
Measured Temperature Max450°C
Resistance @ 0°C100ohm
RTD Element MaterialPlatinum
Probe Material316 Stainless Steel
Probe Diameter6mm
Probe Length400mm
Cable Length - Metric-
Cable Length - Imperial-
Cable TerminationTerminal Block
Wire Configuration4-Wire
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview

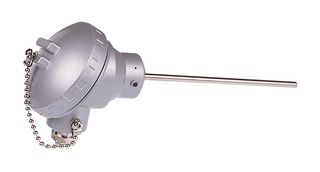

PT4 6X400-KNE (IEC) is a heavy duty industrial Pt100 probe with an aluminum terminal head.
- Pt100, class B, 4 wire to IEC 60751 sensor type
- 316 stainless steel, welded tip
- Tip temperature rating range from -50°C to +450°C
- Aluminum with captive, threaded cover housing a DIN terminal block terminal head
- IP67 assembly rating
- M20 cable gland cable entry
- 6mm probe diameter, 400mm probe length
Technical Specifications
RTD Type
Probe
RTD Accuracy
Class B
Probe Body Material
Stainless Steel
Measured Temperature Max
450°C
RTD Element Material
Platinum
Probe Diameter
6mm
Cable Length - Metric
-
Cable Termination
Terminal Block
Product Range
-
Length
400mm
External Diameter
6mm
Measured Temperature Min
-50°C
Resistance @ 0°C
100ohm
Probe Material
316 Stainless Steel
Probe Length
400mm
Cable Length - Imperial
-
Wire Configuration
4-Wire
SVHC
No SVHC (25-Jun-2025)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
