DPM 3AS-BL
Digital Panel Meter, LCD Backlighting, 3-1/2 Digits, DC Voltage, 0mV to 200mV

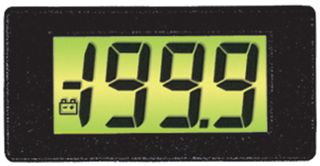

Image is for illustrative purposes only. Please refer to product description.
4 In Stock
Need more?
Same day shipping
Order before 6pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $94.950 |
Price for:Each
Minimum: 1
Multiple: 1
$94.95
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLASCAR
Manufacturer Part NoDPM 3AS-BLCopy
Newark Part No.89C2660
Technical Datasheet
No. of Digits / Alpha3-1/2
Meter FunctionDC Voltage
Meter Range0mV to 200mV
Digit Height11mm
Panel Cutout Height18mm
Panel Cutout Width38mm
Supply Voltage Min3V
Supply Voltage Max15V
Operating Temperature Min0°C
Operating Temperature Max50°C
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
DPM 3AS-BL is a panel meter that includes a 3½-digit LCD with a 12.5mm (0.5") digit height and a 200mV DC full-scale reading. It mounts through a 5.5mm (7/32") panel hole using the integrated threaded stud, allowing fast and simple installation. A rubber seal is supplied to provide splash-proof protection when placed between the meter and the mounting panel. Connection can be made via flying leads or using the T/BLK-4 screw terminal board.
- Programmable decimal points
- 11mm (0.43inch) digit height
- LED backlighting
- Auto-zero and auto polarity
- Operating temperature range from 0 to 50°C
Technical Specifications
No. of Digits / Alpha
3-1/2
Meter Range
0mV to 200mV
Panel Cutout Height
18mm
Supply Voltage Min
3V
Operating Temperature Min
0°C
Product Range
-
Meter Function
DC Voltage
Digit Height
11mm
Panel Cutout Width
38mm
Supply Voltage Max
15V
Operating Temperature Max
50°C
SVHC
No SVHC (07-Nov-2024)
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (07-Nov-2024)
