EM32-1900
Digital Panel Meter, 3 Digits, Temperature, -40°C to +105°C / -40°F to +221°F

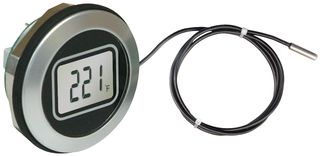

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 1+ | $132.740 |
Price for:Each
Minimum: 1
Multiple: 1
$132.74
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLASCAR
Manufacturer Part NoEM32-1900
Newark Part No.23T2642
Technical Datasheet
No. of Digits / Alpha3
Meter FunctionTemperature
Meter Range-40°C to +105°C / -40°F to +221°F
Digit Height12.5mm
Panel Cutout Height-
Panel Cutout Width-
Supply Voltage Min4VDC
Supply Voltage Max28VDC
Operating Temperature Min-10°C
Operating Temperature Max50°C
Product Range-
Product Overview
The EM32-1900 is a round hole mounting easy to mount LCD Digital Thermometer. The module uses an NTC temperature sensor to ensure high accuracy over a wide temperature range. The module uses an external sensor with a maximum temperature range of -40 to 105°C. This product is designed so no soldering is required. The module features a round metal bezel, requiring a 32.5mm (1.28-inch) diameter cut-out. It is secured with the nut provided. Protection from the front to IP67/NEMA 4X standards is achieved by placing the rubber seal between the module and panel during assembly.
- Solderless setup
Applications
Automation & Process Control
Technical Specifications
No. of Digits / Alpha
3
Meter Range
-40°C to +105°C / -40°F to +221°F
Panel Cutout Height
-
Supply Voltage Min
4VDC
Operating Temperature Min
-10°C
Product Range
-
Meter Function
Temperature
Digit Height
12.5mm
Panel Cutout Width
-
Supply Voltage Max
28VDC
Operating Temperature Max
50°C
SVHC
No SVHC (14-Jun-2023)
