L59D-G24-W
LED Panel Mount Indicator, Green, 24 VDC, 6.35 mm, 20 mA, 20 mcd, Not Rated

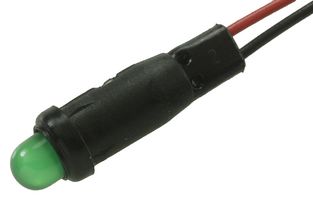

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $19.620 |
| 5+ | $19.280 |
| 10+ | $18.940 |
| 25+ | $18.460 |
| 50+ | $17.980 |
| 100+ | $17.500 |
Price for:Each
Minimum: 1
Multiple: 1
$19.62
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLEECRAFT
Manufacturer Part NoL59D-G24-W
Newark Part No.10F7462
Technical Datasheet
LED ColorGreen
Operating Voltage24VDC
Mounting Hole Dia6.35mm
Forward Current If20mA
Luminous Intensity20mcd
IP / NEMA RatingNot Rated
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The L59D-G24-W is a green Snapfit LED Indicator Light with diffused lens. The L59D series LED indicator light is constructed with a black nylon housing with integral bezel. It is supplied with two color-coded 6-inch wire leads. It supports standard voltage of 24VDC. Indicators Snapfit into 6.35mm diameter mounting hole with a recommended panel thickness range of 0.762 to 1.57mm. It has current of 20mA typical.
- Longer bare terminals identifies the anode (+)
Applications
LED Lighting
Technical Specifications
LED Color
Green
Mounting Hole Dia
6.35mm
Luminous Intensity
20mcd
Product Range
-
Operating Voltage
24VDC
Forward Current If
20mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
