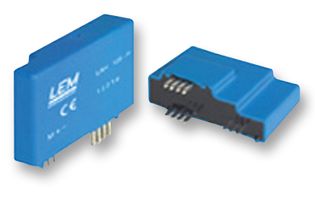

LAH 100-P
Current Transducer, Closed Loop Output, 0.25% Accuracy, 12 Vdc to 15 Vdc
Image is for illustrative purposes only. Please refer to product description.
8 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $38.840 |
| 10+ | $34.630 |
| 25+ | $33.600 |
| 50+ | $31.670 |
| 100+ | $29.500 |
| 250+ | $26.070 |
| 500+ | $22.790 |
Price for:Each
Minimum: 1
Multiple: 1
$38.84
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLEM
Manufacturer Part NoLAH 100-P
Newark Part No.44W8440
Technical Datasheet
Sensor Output TypeClosed Loop
Supply Voltage Range± 12V to ± 15V
Supply Voltage Range± 12V to ± 15V
Measured CurrentAC / DC / Pulsed
Accuracy0.25%
Current Sensor TechnologyClosed Loop, Hall Effect
Primary Current100A
Sensor MountingThrough Hole
Operating Temperature Min-25°C
Operating Temperature Max85°C
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
LAH 100-P is a current transducer for the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. Application includes AC variable speed drives and servo motor drives, static converters for DC motor drives, battery supplied applications, uninterruptible power supplies (UPS), switched mode power supplies (SMPS), power supplies for welding applications and industrial application domain.
- Closed loop (compensated) current transducer using the hall effect
- Printed circuit board mounting
- Insulating plastic case recognized according to UL 94-V0
- Excellent accuracy, very good linearity
- Low temperature drift, optimized delay time
- Wide frequency bandwidth, no insertion losses, EN 50178: 1997 standard
- High immunity to external interference, current overload capability
- 100A primary nominal RMS current, 50mA secondary nominal RMS current
- Supply voltage range from ±12 to 15V (±5%), 1 : 2000 turns ratio
- Ambient operating temperature range from -25 to +85°C
