03540012ZXGY
Fuseholder, Cartridge, 12 Fuses, 30 A, 300 VAC, 300 VDC, 1/4" x 1.1/4", 6.3mm x 32mm, Solder Lug
Need more?
| Quantity | Price |
|---|---|
| 1+ | $27.510 |
| 5+ | $23.760 |
| 10+ | $21.560 |
| 25+ | $20.040 |
| 100+ | $18.530 |
| 500+ | $18.150 |
| 1000+ | $17.790 |
Product Information
Product Overview

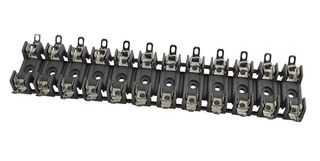

The 03540012ZXGY is a gray Fuse Block made of glass reinforced thermoplastic base and tin-plated phosphorus bronze clip/terminals. The 3AG OMNI-BLOK® low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a 1-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the 2-pole unit, multiple pole units may be broken apart to obtain desired number of poles.
- 1500V Minimum dielectric strength
- UL94V-0 Flammability rating
Applications
Safety
Technical Specifications
Cartridge Fuse Holder
1/4" x 1.1/4", 6.3mm x 32mm
12Fuses
300V
To Be Advised
30A
Solder Lug
OMNI-BLOK 354 Series
300V
Technical Docs (2)
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
