59025-1-T-02-F
Proximity Reed Sensor, 20.32 mm, Cable Mount, 500 mA, -40°C to 105°C, 59025 Series
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $1.420 |
| 10+ | $1.210 |
| 25+ | $1.120 |
| 50+ | $1.060 |
| 100+ | $0.997 |
| 500+ | $0.873 |
| 1000+ | $0.827 |
| 2500+ | $0.773 |
Product Information
Product Overview

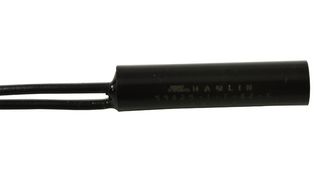

The 59025-010 is a small cylindrical Firecracker Reed Sensor with hermetically sealed magnetically operated contacts continues to operate long after optical and other technologies fail due to contamination. This sensor operates through non-ferrous materials such as wood, plastic or aluminum. Ideal for battery-powered applications as the contacts do not draw power when in the non-activated state. Well suited for usage in high moisture and contaminated environments and reed contacts last for millions of operating cycles under microcontroller logic level loads.
- Magnetically-operated proximity sensor
- Fits nicely into small confined spaces
- Quick and easy to install
Applications
Sensing & Instrumentation, Security
Notes
Shock and vibration are as per EIA/NARM RS-421-A and MIL-STD-202.
Technical Specifications
Firecracker Reed Sensor
Cable
-40°C
-
6.2mm
500mA
105°C
To Be Advised
