M1252 WH001
Multiconductor Cable, MIL-W-16878/4 Type E, Hi Temp, Shielded, 2 Conductor, 16 AWG, 1000 ft, 305 m

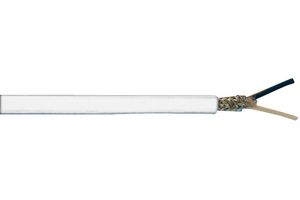

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMANHATTAN / CDT
Manufacturer Part NoM1252 WH001
Newark Part No.95B9857
Product RangeM1252 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
| Quantity | Price |
|---|---|
| 1+ | $10,368.570 |
| 5+ | $9,967.580 |
| 10+ | $9,623.870 |
Price for:Spool of 1000
Minimum: 1
Multiple: 1
$10,368.57
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMANHATTAN / CDT
Manufacturer Part NoM1252 WH001
Newark Part No.95B9857
Product RangeM1252 Series
Technical Datasheet
Cable ShieldingShielded
No. of Conductors2Conductor
Wire Gauge16AWG
Conductor Area CSA-
Reel Length (Imperial)1000ft
Reel Length (Metric)305m
Jacket ColorWhite
No. of Max Strands x Strand Size19 x 29AWG
Conductor MaterialSilver Plated Copper
Jacket MaterialPTFE
External Diameter5.232mm
Voltage Rating600V
Product RangeM1252 Series
SVHCTo Be Advised
Technical Specifications
Cable Shielding
Shielded
Wire Gauge
16AWG
Reel Length (Imperial)
1000ft
Jacket Color
White
Conductor Material
Silver Plated Copper
External Diameter
5.232mm
Product Range
M1252 Series
No. of Conductors
2Conductor
Conductor Area CSA
-
Reel Length (Metric)
305m
No. of Max Strands x Strand Size
19 x 29AWG
Jacket Material
PTFE
Voltage Rating
600V
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
