MAX25600EVKIT#
Evaluation Board, MAX25600 HB LED Controller, Automotive, High Voltage, 1.5A, 8V To 4V DC

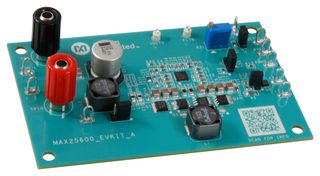

Image is for illustrative purposes only. Please refer to product description.
ManufacturerANALOG DEVICES
Manufacturer Part NoMAX25600EVKIT#
Newark Part No.09AH9783
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 1+ | $392.970 |
Price for:Each
Minimum: 1
Multiple: 1
$392.97
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoMAX25600EVKIT#
Newark Part No.09AH9783
Technical Datasheet
Device TopologyBuck-Boost
No. of Outputs1Outputs
Output Current1.5A
Output Voltage60V
Input Voltage Min8V
Input Voltage Max48V
Core ChipMAX25600
Dimming Control TypePWM
Kit ContentsEvaluation Kit MAX25600
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Evaluation kit for the MAX25600
- 8V to 48V Input Voltage Range
- Demonstrates analogue dimming control, digital dimming control
- Demonstrates input current limit
- Demonstrates LED current monitoring function
- Demonstrates LED short and open protection
- Proven PCB layout
- Fully assembled and tested
