HEP-240-24A
AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 240 W, 24 V, 10 A

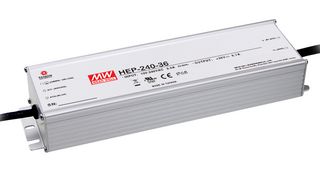

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMEAN WELL
Manufacturer Part NoHEP-240-24A
Newark Part No.44AC5231
Product RangeHEP-240 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
| Quantity | Price |
|---|---|
| 1+ | $268.040 |
| 10+ | $238.560 |
| 25+ | $227.840 |
Price for:Each
Minimum: 1
Multiple: 1
$268.04
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMEAN WELL
Manufacturer Part NoHEP-240-24A
Newark Part No.44AC5231
Product RangeHEP-240 Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs1Outputs
Output Power Max240W
Output Voltage - Output 124VDC
Output Current - Output 110A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Output Voltage - Output 4-
Output Current - Output 4-
Input Voltage VAC90V AC to 305V AC
Power Supply Output TypeAdjustable, Fixed
Product RangeHEP-240 Series
SVHCNo SVHC (27-Jun-2024)
Product Overview
HEP-240-24A is HEP-240 series 240W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. This is housed with a robust aluminum case and fully potted with heat-conducted silicone. It is enabling HEP-240, with a fanless design. Application includes outdoor telecommunication equipment, outdoor electronic signage and billboard, petroleum plant or mine shaft facility. Approved by UL62368-1, IEC62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 Design refer to BS EN/EN62368-1.
- Output DC voltage is 24V, rated current is 10A, rated power is 240W, efficiency is 92.5%
- Input voltage range from 85 to 264VAC(227VAC operational), 120 to 370VDC(390VDCopeartional)
- Universal AC input / full range, built-in active PFC function
- Fanless design, cooling by free air convection
- Meet 6KV surge immunity level, withstand 10G vibration test
- Operating altitude up to 5000 meters
- Short circuit, overload, over voltage protection
- Working temperature range from -55 to +70℃
- 6 years warranty
- Dimension (L x W x H) is 9.614 x 2.677 x 1.527inch
Technical Specifications
Power Supply Applications
ITE
Output Power Max
240W
Output Current - Output 1
10A
Output Current - Output 2
-
Output Current - Output 3
-
Output Current - Output 4
-
Power Supply Output Type
Adjustable, Fixed
SVHC
No SVHC (27-Jun-2024)
No. of Outputs
1Outputs
Output Voltage - Output 1
24VDC
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 4
-
Input Voltage VAC
90V AC to 305V AC
Product Range
HEP-240 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
