ASM01Y0164-0G16
Wire-To-Board Terminal Block, 1 Positions, 18 AWG, 16 AWG, 1.5 mm², Clamp

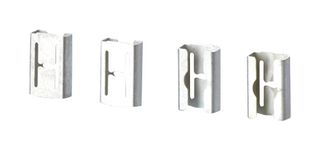

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMETZ CONNECT
Manufacturer Part NoASM01Y0164-0G16
Newark Part No.37AC3599
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 5000+ | $0.237 |
| 10000+ | $0.224 |
| 15000+ | $0.214 |
Price for:Each (Supplied on Cut Tape)
Minimum: 5000
Multiple: 5000
$1,185.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMETZ CONNECT
Manufacturer Part NoASM01Y0164-0G16
Newark Part No.37AC3599
Technical Datasheet
Pitch Spacing-
No. of Positions1Positions
Wire Size AWG Min18AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.5mm²
Wire Connection MethodClamp
Rated Current13A
Rated Voltage-
Block OrientationSurface Mount Vertical
Product Range-
SVHCNo SVHC (17-Jan-2022)
Technical Specifications
Pitch Spacing
-
Wire Size AWG Min
18AWG
Conductor Area CSA
1.5mm²
Rated Current
13A
Block Orientation
Surface Mount Vertical
SVHC
No SVHC (17-Jan-2022)
No. of Positions
1Positions
Wire Size AWG Max
16AWG
Wire Connection Method
Clamp
Rated Voltage
-
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
