AC164127-8

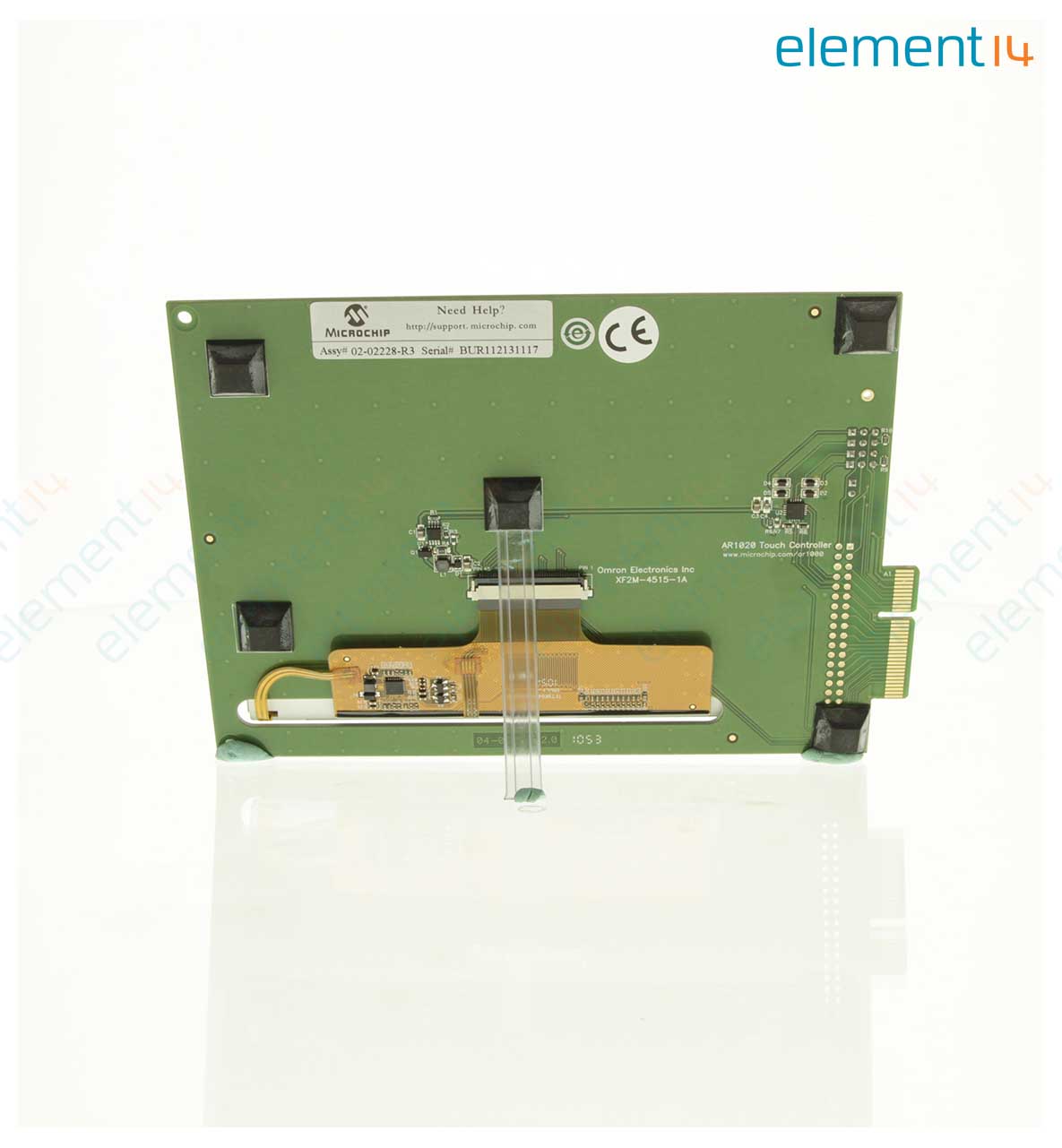

Evaluation Board, Resistive 4-Wire Touch Screen, AR1020 Resistive Touch Controller
Image is for illustrative purposes only. Please refer to product description.
Available to Order
| Quantity | Price |
|---|---|
| 1+ | $726.380 |
Price for:Each
Minimum: 1
Multiple: 1
$726.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoAC164127-8
Newark Part No.47T4545
Technical Datasheet
Silicon ManufacturerMicrochip
Core ArchitecturePIC
Core Sub-Architecture-
Silicon Core Number-
Silicon Family NamePICtail
For Use WithMicrochip 16 and 32-bit Microcontrollers
Kit ContentsEval Board AC164127
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
AC164127-8 is a graphics display truly 5.7inch 640 x 480 demonstration board for evaluating graphic display solution and graphics library for 16bit and 32bit microcontrollers. It is an expansion board compatible with the LCD controller boards.
- TFT Display with 24bit parallel RGB interface and 4 wire, resistive touch interface
- Resistive touch controller (AR1020) interfaced to the MCU through the SPI module
- Additional direct interface to MCU for 4 wire resistive touch signals
Applications
Imaging, Video & Vision
Technical Specifications
Silicon Manufacturer
Microchip
Core Sub-Architecture
-
Silicon Family Name
PICtail
Kit Contents
Eval Board AC164127
SVHC
No SVHC (21-Jan-2025)
Core Architecture
PIC
Silicon Core Number
-
For Use With
Microchip 16 and 32-bit Microcontrollers
Product Range
-
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (21-Jan-2025)
