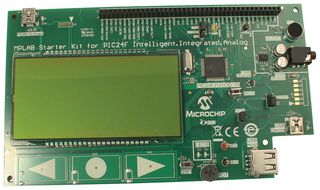

DM240015 is a MPLAB starter kit for PIC24F Intelligent. Integrated. Analogue featuring the PIC24F GC family of 16bit microcontrollers. This family features advanced integrated analogue which reduces BOM cost, lowers noise, and has faster throughput. The board features an analogue header, allowing clean analogue signals to be accessed, preserving signal integrity. To complement the header, the board also features on board sensors such as light sensor, potentiometer, microphone, temperature, and capacitive touch. The custom LCD display features a 296 dot matrix array for text display, and 17 special icons. The text display area features scrolling information displays for several of the included demos. Controlling the display are three mTouch navigation touch pads.

• High speed (10Msps), 12bit A/D Converter with multiple input channels
• High accuracy, 16bit sigma delta A/D converter with two input channels
• Dual 10bit, voltage output digital to analogue converters
• Two op amps and three comparators
• MTouch capacitive sensing
• Ambient light sensor and digital temperature sensor
• Microphone and headphone/line amplifier (stereo)
• Precision, low drift voltage reference

Applications

Portable Devices, Industrial, Consumer Electronics, Wireless, Sensing & Instrumentation

Contents

Board, USB cable.
