MA180033
Plug-In Module, Supports Most of the PIC18F6 & PIC18F8 64pin & 8pin MCUs, AC164110

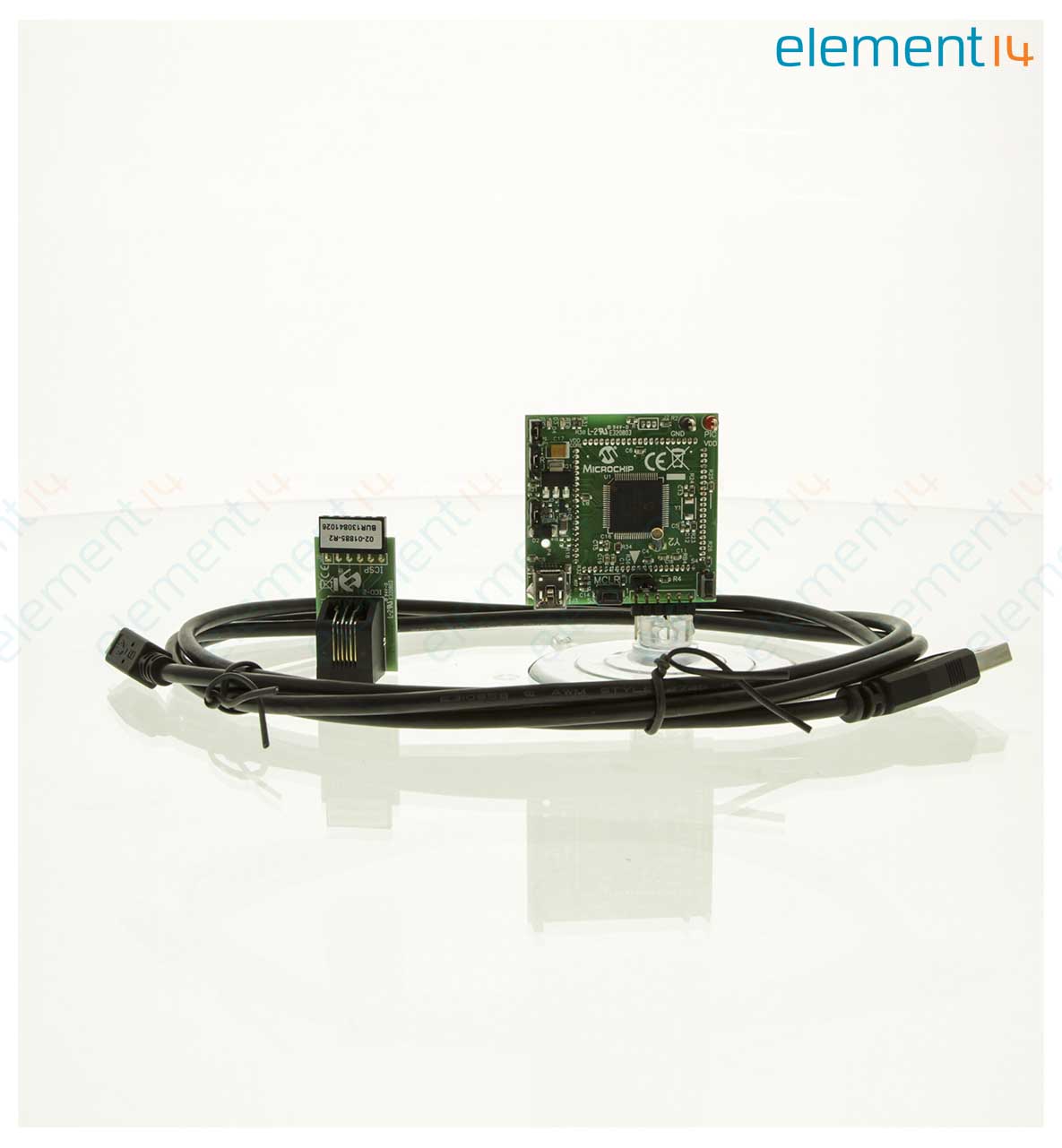

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoMA180033
Newark Part No.66W7078
Technical Datasheet
Silicon ManufacturerMicrochip
Core ArchitecturePIC
Core Sub-ArchitecturePIC18
Silicon Core NumberPIC18F87J94
Silicon Family NamePIC18F
For Use WithMicrochip DM183032 PICDEM PIC18 Explorer Board
Kit ContentsPlug-In Module PIC18F87J94, RJ-11 to ICSP Adapter, USB A to Mini-B Cable
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The PIC18F87J94 Demo Board/Plug-In Module is a board featuring the 80-pin PIC18F87J94 which supports the evaluation of the following 64- and 80-pin PIC microcontrollers: PIC18F87J94, PIC18F67J94, PIC18F86J99, PIC18F66J99, PIC18F86J94, PIC18F66J94, PIC18F85J94, and PIC18F65J94. This plug-in-module (PIM) can be plugged into the popular PICDEM PIC18 Explorer Board for additional functionality or it can be used standalone.
- Can be used with PIC18 Explorer Board (DM183032) for additional functionality
- Supports the evaluation of 64- and 80-pin PIC ® microcontrollers
- Contains code examples
Applications
Embedded Design & Development
Contents
PIC18F87J94 PIM Board, RJ-11 to ICSP Adapter, USB A to Mini-B Cable
Technical Specifications
Silicon Manufacturer
Microchip
Core Sub-Architecture
PIC18
Silicon Family Name
PIC18F
Kit Contents
Plug-In Module PIC18F87J94, RJ-11 to ICSP Adapter, USB A to Mini-B Cable
SVHC
No SVHC (21-Jan-2025)
Core Architecture
PIC
Silicon Core Number
PIC18F87J94
For Use With
Microchip DM183032 PICDEM PIC18 Explorer Board
Product Range
-
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:3A991A2
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (21-Jan-2025)
