0985-1-15-20-71-14-11-0
Contact, Connector, Discrete, Contact, Spring Loaded Contact, 0.186 ", Radius, 2 A, 0.397 ", 15 g

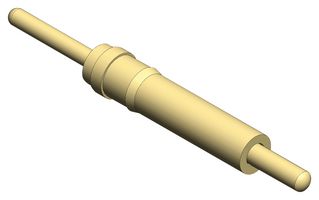

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMILL-MAX
Manufacturer Part No0985-1-15-20-71-14-11-0
Newark Part No.76Y6103
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
| Quantity | Price |
|---|---|
| 1000+ | $0.818 |
Price for:Each
Minimum: 1000
Multiple: 1000
$818.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMILL-MAX
Manufacturer Part No0985-1-15-20-71-14-11-0
Newark Part No.76Y6103
Technical Datasheet
Connector TypeSpring Loaded Contact
Centerline Spacing0.186"
Connector Tip StyleRadius
Current Rating2A
Overall Length0.397"
Spring Force Initial15g
Spring Force Working Travel50g
Product Range-
SVHCTo Be Advised
Product Overview
The 0985-1-15-20-71-14-11-0 from Mill Max is a 0.016" diameter spring loaded pin.
- Current rating is 2A continuous, 3A peak
- Contact resistance is 20mohm
- Operating temperature range from -55°C to +125°C
- Durability of 1,000,000 cycles
- Shell material is brass, shell plating and inner spring plating is gold over nickel
- Pin length is 0.150inch
Applications
Test & Measurement
Technical Specifications
Connector Type
Spring Loaded Contact
Connector Tip Style
Radius
Overall Length
0.397"
Spring Force Working Travel
50g
SVHC
To Be Advised
Centerline Spacing
0.186"
Current Rating
2A
Spring Force Initial
15g
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
