293-344-30

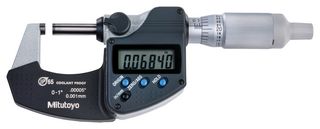

Micrometer, External, Digital, IP65, 1" Measuring Range, 0.00005" Accuracy
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMITUTOYO
Manufacturer Part No293-344-30
Newark Part No.45X8660
Product Range293 Series
Technical Datasheet
Available to Order by Phone
Please contact us for latest stock details.
Product Information
ManufacturerMITUTOYO
Manufacturer Part No293-344-30
Newark Part No.45X8660
Product Range293 Series
Technical Datasheet
Measuring Range Max1"
Graduations-
Accuracy0.00005"
No. of Anvils-
Product Range293 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
293-344-30 is a waterproof digital inch/metric micrometer that suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement.
- 0 - 1" range, 0.00005" digital step
- LCD, character height 0.29inch display
- Carbide-tipped, micro-lap finish measuring face
- 5 - 10N measuring force, 1 battery SR-44 power supply
- Function lock, 2 x PRESET (over 100mm), ratched thimble
Contents
Micrometer, box, key, 1 battery, Setting standard (from 1" upward) certificate of inspection (0-2" range).
Technical Specifications
Measuring Range Max
1"
Accuracy
0.00005"
Product Range
293 Series
Graduations
-
No. of Anvils
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (21-Jan-2025)
