1200710045
Sensor Connector, PG7, Micro-Change 120071 Series, M12, Plug, 5 Contacts, Solder Pin

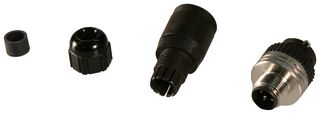

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX / BRAD
Manufacturer Part No1200710045
Newark Part No.15M4866
Product RangeMicro-Change 120071 Series
Also Known As8A5006-31
Technical Datasheet
25 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $54.600 |
| 5+ | $51.730 |
| 10+ | $49.140 |
| 25+ | $46.850 |
| 50+ | $44.540 |
| 100+ | $42.540 |
Price for:Each
Minimum: 1
Multiple: 1
$54.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX / BRAD
Manufacturer Part No1200710045
Newark Part No.15M4866
Product RangeMicro-Change 120071 Series
Also Known As8A5006-31
Technical Datasheet
Product RangeMicro-Change 120071 Series
Sensor Connector SizeM12
Sensor Connector GenderMale
No. of Contacts5Contacts
No. of Positions5 Positions
Sensor Contact TypeSolder Pin
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector Coding-
Connector Body MaterialNylon (Polyamide) Body
Contact MaterialBrass
Contact PlatingSilver
Current Rating4A
Voltage Rating36VDC
SVHCLead
Product Overview
The 1200710045 is a 5-position straight Sensor Connector with silver plated brass contacts and a Polyamide molded body. This connector features single key M12 connector per IEC 61076-2-101 and screw terminal connection accepts up to 18AWG conductors. For use with all standard single keyway M12 receptacles and cordsets.
- 4A Rated current
- IP67 Protection rating
Applications
Sensing & Instrumentation
Technical Specifications
Product Range
Micro-Change 120071 Series
Sensor Connector Gender
Male
No. of Contacts
5Contacts
Sensor Contact Type
Solder Pin
IP / NEMA Rating
IP67
Connector Body Material
Nylon (Polyamide) Body
Contact Plating
Silver
Voltage Rating
36VDC
Sensor Connector Size
M12
Gender
Plug
No. of Positions
5 Positions
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
-
Contact Material
Brass
Current Rating
4A
SVHC
Lead
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
