02-09-2101

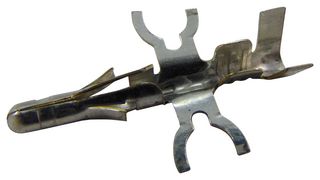

Contact, Standard .093" 1190 Series, Pin, Crimp, 14 AWG, Tin Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No02-09-2101
Newark Part No.74C6794
Product RangeStandard .093" 1190 Series
Also Known As1190-(P901), GTIN UPC EAN: 191128081627
Technical Datasheet
23,055 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.084 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No02-09-2101
Newark Part No.74C6794
Product RangeStandard .093" 1190 Series
Also Known As1190-(P901), GTIN UPC EAN: 191128081627
Technical Datasheet
Product RangeStandard .093" 1190 Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max14AWG
Contact PlatingTin Plated Contacts
For Use WithPlug or Receptacle Housing
Wire Size AWG Min20AWG
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 02-09-2101 from Molex is a series 1190 2.36mm diameter, standard 0.093" pin crimp terminal. It is used with series 1619, 1545, 1396, 1490, 2629 1261, 1292 plug or receptacle housing.
- Tin (Sn) plated brass contact
- Wire gauge range from 20AWG to 14AWG
- Wire insulation diameter is 1.65mm to 4.06mm
- Crimp or compression termination
- Durability (mating cycles max) is 25
- Embossed tape packaging
Applications
Communications & Networking, Consumer Electronics
Technical Specifications
Product Range
Standard .093" 1190 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Pin
Wire Size AWG Max
14AWG
For Use With
Plug or Receptacle Housing
Contact Material
Brass
Technical Docs (3)
Alternatives for 02-09-2101
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
