08-50-0106

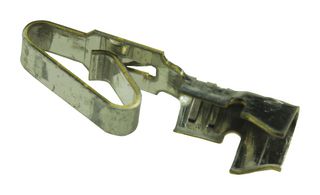

Contact, KK® 396, KK 2478 Series, Socket, Crimp, 18 AWG, Tin Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No08-50-0106
Newark Part No.72K1670
Product RangeKK 2478 Series
Also Known As2478-1-(P909)L, GTIN UPC EAN: 800753750029
Technical Datasheet
20,641 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.142 |
| 10+ | $0.124 |
| 25+ | $0.120 |
| 50+ | $0.116 |
| 100+ | $0.112 |
| 250+ | $0.109 |
| 500+ | $0.105 |
| 1000+ | $0.094 |
Price for:Each
Minimum: 1
Multiple: 1
$0.14
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No08-50-0106
Newark Part No.72K1670
Product RangeKK 2478 Series
Also Known As2478-1-(P909)L, GTIN UPC EAN: 800753750029
Technical Datasheet
Product RangeKK 2478 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max18AWG
Contact PlatingTin Plated Contacts
For Use With2574, 2139, 41695, 3069, 6422, 5265, 5239 Connectors
Wire Size AWG Min24AWG
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
08-50-0106 is a 2478 series 18 to 24AWG, KK 396 female crimp terminal.
- Brass material, tin plating mating material
- 2.540µm mating/termination plating
- Wire insulation diameter is 2.79mm maximum
- Friction lock headers; friction lock ramp housings
- Polarizing backwalls
- RPC (Reflow Process Compatible) Connector System
- High-temperature nylon housing
- Signal Applications (KK 254 Connector System)
- Power Applications (KK 396 Connector System)
Technical Specifications
Product Range
KK 2478 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
24AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
18AWG
For Use With
2574, 2139, 41695, 3069, 6422, 5265, 5239 Connectors
Contact Material
Brass
Technical Docs (3)
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
