08-50-0113
Contact, KK® 254, KK 254 2759 Series, Socket, Crimp, 22 AWG, Tin Plated Contacts

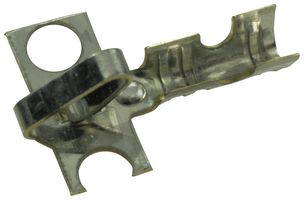

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No08-50-0113
Newark Part No.88C0996
Product RangeKK 254 2759 Series
Also Known As2759-(P909)B, GTIN UPC EAN: 800753614444
Technical Datasheet
8,565 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.096 |
| 25+ | $0.060 |
| 100+ | $0.057 |
| 250+ | $0.055 |
| 500+ | $0.052 |
| 1000+ | $0.049 |
| 2500+ | $0.048 |
| 5000+ | $0.045 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.10
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No08-50-0113
Newark Part No.88C0996
Product RangeKK 254 2759 Series
Also Known As2759-(P909)B, GTIN UPC EAN: 800753614444
Technical Datasheet
Product RangeKK 254 2759 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingTin Plated Contacts
For Use With2695, 5051, 6745, 41895 Connectors
Wire Size AWG Min30AWG
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
08-50-0113 is a 2759 series KK 254 female crimp terminal. Suitable for use with 2695 KK 254 single row crimp housings, 5051 KK 2.50mm pitch single row receptacle housings.
- Brass metal
- Tin plating mating and plating termination
- Crimp or compression termination interface style
- Max 1.57mm wire insulation diameter
- Wire size is 22, 24, 26, 28, 30AWG
- RPC (Reflow Process Compatible) Connector System
- High-temperature nylon housing
- Signal Applications (KK 254 Connector System)
- Power Applications (KK 396 Connector System)
Technical Specifications
Product Range
KK 254 2759 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
30AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
22AWG
For Use With
2695, 5051, 6745, 41895 Connectors
Contact Material
Brass
Technical Docs (3)
Alternatives for 08-50-0113
2 Products Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
