09-50-3071
Connector Housing, KK 396 2139 Series, Receptacle, 7 Positions, 3.96 mm

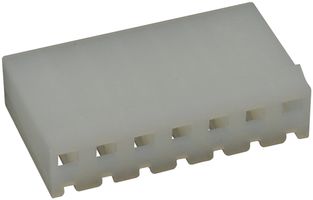

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No09-50-3071
Newark Part No.18M7873
Product RangeKK 396 2139 Series
Also Known As2139-7A, GTIN UPC EAN: 800753614055
Technical Datasheet
5,652 In Stock
Ship in 2-3 days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 250+ | $0.300 |
| 500+ | $0.300 |
| 1000+ | $0.299 |
Price for:Each
Minimum: 300
Multiple: 1
$90.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No09-50-3071
Newark Part No.18M7873
Product RangeKK 396 2139 Series
Also Known As2139-7A, GTIN UPC EAN: 800753614055
Technical Datasheet
Product RangeKK 396 2139 Series
No. of Positions7Positions
Pitch Spacing3.96mm
For Use With2478, 2578 Series Crimp Contacts
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 09-50-3071 is a 7-way 1-row KK® 3.96mm female Crimp Terminal Housing made of nylon with friction ramp. It is suitable for power and wire-to-board applications. This 2139 series crimp housing can be used with 2478 crimp terminals for 18 to 24AWG and 2578 crimp terminals for 22 to 26AWG.
- Natural color
- UL94V-2 Flammability rating
- Lock to mating part
Applications
Power Management
Technical Specifications
Product Range
KK 396 2139 Series
No. of Positions
7Positions
For Use With
2478, 2578 Series Crimp Contacts
Gender
Receptacle
Pitch Spacing
3.96mm
SVHC
No SVHC (21-Jan-2025)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
