Contact, C-Grid®, SL 70021 Series, Pin, Crimp, 22 AWG, Gold Plated Contacts, 70066, 70107 Housings
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No16-02-0115
Newark Part No.55H2492
Product RangeSL 70021 Series
Also Known As70021-0223, GTIN UPC EAN: 800753595705
Technical Datasheet
11,693 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.638 |
| 10+ | $0.563 |
| 25+ | $0.515 |
| 50+ | $0.490 |
| 100+ | $0.466 |
| 250+ | $0.424 |
| 500+ | $0.391 |
| 1000+ | $0.356 |
Price for:Each
Minimum: 1
Multiple: 1
$0.64
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No16-02-0115
Newark Part No.55H2492
Product RangeSL 70021 Series
Also Known As70021-0223, GTIN UPC EAN: 800753595705
Technical Datasheet
Product RangeSL 70021 Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingGold Plated Contacts
For Use With70066, 70107 Housings
Wire Size AWG Min24AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview

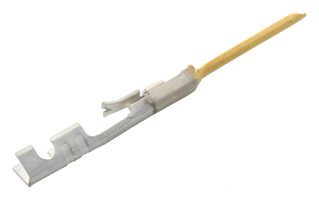

The 16-02-0115 is a SL™ male pin crimp terminal made of phosphor bronze with gold plated finish. This 70021 series male crimp terminal accepts 24 to 22AWG wire. It can be used with 70066 and 70107 housing. The terminal is suitable for signal applications.
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
Technical Specifications
Product Range
SL 70021 Series
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
24AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Pin
Wire Size AWG Max
22AWG
For Use With
70066, 70107 Housings
Contact Material
Phosphor Bronze
