19016-0009
Quick Disconnect Terminal, Krimptite 19016 Series, Female Quick Disconnect, 6.35mm x 0.81mm

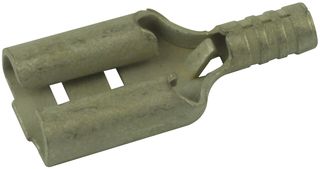

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No19016-0009
Newark Part No.94C7280
Product RangeKrimptite 19016 Series
Also Known AsAA-1140, GTIN UPC EAN: 800753034471
Technical Datasheet
13,363 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.185 |
| 10+ | $0.152 |
| 25+ | $0.137 |
| 50+ | $0.128 |
| 100+ | $0.121 |
| 250+ | $0.110 |
| 500+ | $0.102 |
| 1000+ | $0.095 |
Price for:Each
Minimum: 1
Multiple: 1
$0.18
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No19016-0009
Newark Part No.94C7280
Product RangeKrimptite 19016 Series
Also Known AsAA-1140, GTIN UPC EAN: 800753034471
Technical Datasheet
Product RangeKrimptite 19016 Series
Terminal TypeFemale Quick Disconnect
Tab Size - Metric6.35mm x 0.81mm
Tab Size - Imperial0.25" x 0.032"
Wire Size AWG Min22AWG
Wire Size AWG Max18AWG
Insulator Colour-
Conductor Area CSA0.8mm²
Insulator MaterialUninsulated
Terminal MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 19016-0009 is a Krimptite™ female Quick Disconnect Terminal applicable for 22 to 18AWG wire range. It is made of brass with tin-plated finish.
- Closed barrel type
- Straight orientation
Applications
Automotive, Consumer Electronics, Industrial, HVAC
Technical Specifications
Product Range
Krimptite 19016 Series
Tab Size - Metric
6.35mm x 0.81mm
Wire Size AWG Min
22AWG
Insulator Colour
-
Insulator Material
Uninsulated
SVHC
No SVHC (21-Jan-2025)
Terminal Type
Female Quick Disconnect
Tab Size - Imperial
0.25" x 0.032"
Wire Size AWG Max
18AWG
Conductor Area CSA
0.8mm²
Terminal Material
Brass
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
