19164-0056

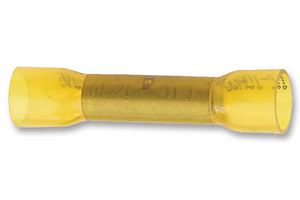

Butt Splice, Yellow, Perma-Seal 19164 Series, 12 AWG, 10 AWG, NiAc
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No19164-0056
Newark Part No.55H4957
Product RangePerma-Seal 19164 Series
Also Known AsSC-12-10, GTIN UPC EAN: 800753113411
Technical Datasheet
349 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.410 |
| 10+ | $1.100 |
| 25+ | $1.020 |
| 50+ | $0.989 |
| 100+ | $0.966 |
| 250+ | $0.903 |
| 500+ | $0.837 |
| 1000+ | $0.801 |
Price for:Each
Minimum: 1
Multiple: 1
$1.41
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No19164-0056
Newark Part No.55H4957
Product RangePerma-Seal 19164 Series
Also Known AsSC-12-10, GTIN UPC EAN: 800753113411
Technical Datasheet
Insulator ColourYellow
Product RangePerma-Seal 19164 Series
Wire Size AWG Min12AWG
Wire Size AWG Max10AWG
Conductor Area CSA-
Insulator MaterialNiAc
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 19164-0056 is a Perma-Seal™ butt splice Terminal with yellow NiAc insulator, tin-plated copper mating and termination, closed barrel type and 12 to 10AWG wire size.
- 600V maximum voltage
- Maximum wire insulation diameter is 7.87mm
Applications
Automotive, Consumer Electronics
Technical Specifications
Insulator Colour
Yellow
Wire Size AWG Min
12AWG
Conductor Area CSA
-
SVHC
No SVHC (21-Jan-2025)
Product Range
Perma-Seal 19164 Series
Wire Size AWG Max
10AWG
Insulator Material
NiAc
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
