39100-2012
Panel Mount Barrier Terminal Block, Eurostyle, 2 Row, 12 Positions, 18 AWG, 10 AWG, 10 mm, 30 A

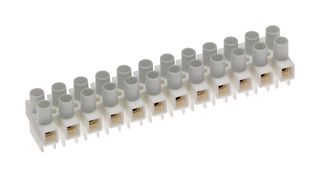

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No39100-2012
Newark Part No.83X8192
Product RangeEurostyle 39100 Series
Also Known AsM800-02-12-5-M1, GTIN UPC EAN: 78172545161
Technical Datasheet
311 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.610 |
| 5+ | $6.610 |
| 10+ | $6.060 |
| 25+ | $6.060 |
| 50+ | $5.590 |
| 100+ | $5.590 |
| 250+ | $5.590 |
Price for:Each
Minimum: 1
Multiple: 1
$6.61
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No39100-2012
Newark Part No.83X8192
Product RangeEurostyle 39100 Series
Also Known AsM800-02-12-5-M1, GTIN UPC EAN: 78172545161
Technical Datasheet
No. of Rows2 Row
No. of Positions12Positions
Wire Size AWG Min18AWG
Wire Size AWG Max10AWG
Pitch Spacing10mm
Rated Current30A
Rated Voltage600V
Product RangeEurostyle 39100 Series
SVHCLead
Product Overview
The 39100-2012 is a 12-position 30A white high profile panel-mount Barrier Terminal Block made up of PA 66 body with stainless steel terminal, nickel-plated brass cage and a zinc-plated steel screw. It has 3000VDC for 1 minute dielectric voltage withstand. It is suitable for use with the wire-to-wire applications.
- Vertical orientation
- Horizontal entry angle
- 4.4inch-lb Maximum torque
- 100GΩ at 1000VDC Insulation resistance
- <lt/>3mΩ Contact resistance
- UL94V-0 Flammability
Applications
Industrial
Technical Specifications
No. of Rows
2 Row
Wire Size AWG Min
18AWG
Pitch Spacing
10mm
Rated Voltage
600V
SVHC
Lead
No. of Positions
12Positions
Wire Size AWG Max
10AWG
Rated Current
30A
Product Range
Eurostyle 39100 Series
Technical Docs (4)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
