42815-0032

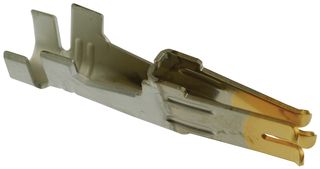

Contact, Mini-Fit® Sr.™, Mini-Fit Sr. 42815 Series, Socket, Crimp, 8 AWG, Gold Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No42815-0032
Newark Part No.56H9091
Product RangeMini-Fit Sr. 42815 Series
Also Known AsGTIN UPC EAN: 800756101101
Technical Datasheet
10,905 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.670 |
| 25+ | $1.670 |
| 50+ | $1.670 |
| 100+ | $1.670 |
| 250+ | $1.540 |
| 500+ | $1.540 |
| 1000+ | $1.440 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$1.67
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No42815-0032
Newark Part No.56H9091
Product RangeMini-Fit Sr. 42815 Series
Also Known AsGTIN UPC EAN: 800756101101
Technical Datasheet
Product RangeMini-Fit Sr. 42815 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max8AWG
Contact PlatingGold Plated Contacts
For Use With-000
Wire Size AWG Min-
Contact MaterialCopper Alloy
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 42815-0032 is a Mini-Fit Sr.™ female socket crimp terminal made of high performance alloy (HPA) with gold plated finish. This 42815 series female crimp terminal accepts 8AWG wire. The terminal is suitable for power applications. It can be used with 42816 and 43914 Mini-Fit Sr.™ receptacle housings.
- High current/low force
- Maximum current per contact is 50A
Applications
Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
Technical Specifications
Product Range
Mini-Fit Sr. 42815 Series
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
-
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
8AWG
For Use With
-000
Contact Material
Copper Alloy
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
