43030-0007

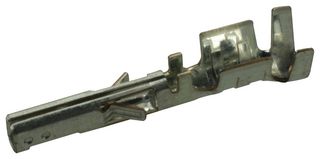

Contact, Micro-Fit 3.0™, Micro-Fit 3.0 43030 Series, Socket, Crimp, 20 AWG, Tin Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No43030-0007
Newark Part No.56H9412
Product RangeMicro-Fit 3.0 43030 Series
Also Known AsGTIN UPC EAN: 800753755772
Technical Datasheet
44,773 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.267 |
| 10+ | $0.233 |
| 25+ | $0.196 |
| 50+ | $0.192 |
| 100+ | $0.188 |
| 250+ | $0.171 |
| 500+ | $0.169 |
| 1000+ | $0.166 |
Price for:Each
Minimum: 1
Multiple: 1
$0.27
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No43030-0007
Newark Part No.56H9412
Product RangeMicro-Fit 3.0 43030 Series
Also Known AsGTIN UPC EAN: 800753755772
Technical Datasheet
Product RangeMicro-Fit 3.0 43030 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max20AWG
Contact PlatingTin Plated Contacts
For Use WithMicro-Fit 3.0 Connectors
Wire Size AWG Min24AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (25-Jun-2025)
Product Overview
43030-0007 is a Micro-Fit 3.0 female crimp terminal with tin (Sn) plated phosphor bronze contact. For use with 43025 Micro-Fit 3.0 dual row receptacle housings, 43645 Micro-Fit 3.0 single row receptacle housings, 44133 Micro-Fit BMI dual row receptacle housings, 46623 Micro-Fit BMI single row receptacle housings, 171850 Micro-Fit TPA single row receptacle housings, 172952 Micro-Fit TPA receptacle housings.
- Crimp or compression termination interface style
- 8.5A current - maximum per contact
- 20, 22, 24AWG wire size
Technical Specifications
Product Range
Micro-Fit 3.0 43030 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
24AWG
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Socket
Wire Size AWG Max
20AWG
For Use With
Micro-Fit 3.0 Connectors
Contact Material
Phosphor Bronze
Alternatives for 43030-0007
3 Products Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
