502598-3393
FFC / FPC Board Connector, 0.3 mm, 33 Contacts, Receptacle, Easy-On 502598 Series, Surface Mount

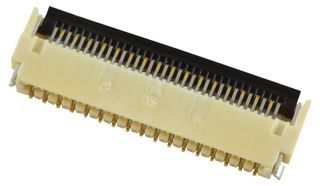

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No502598-3393
Newark Part No.67X3416
Product RangeEasy-On 502598
Also Known AsGTIN UPC EAN: 887191146423
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 48 week(s)
| Quantity | Price |
|---|---|
| 1+ | $3.060 |
| 10+ | $2.700 |
| 25+ | $2.420 |
| 50+ | $2.380 |
| 100+ | $2.330 |
| 250+ | $2.160 |
| 500+ | $2.100 |
| 1000+ | $2.060 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$3.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No502598-3393
Newark Part No.67X3416
Product RangeEasy-On 502598
Also Known AsGTIN UPC EAN: 887191146423
Technical Datasheet
Pitch Spacing0.3mm
No. of Contacts33Contacts
Product RangeEasy-On 502598
Contact Termination TypeSurface Mount
Contact PositionTop, Bottom
No. of Rows1 Row
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.2mm
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 502598-3393 is a 33-position 1-row female right-angle Easy-On™ BackFlip™ type FPC Connector with gold-plated phosphor bronze contacts. It mates with the 15015 0.30mm pitch Premo-Flex™ etched polyimide jumper.
- PCB retention
- Polarized to PCB
- Dual contact style
- 1.15mm mated height
- Maximum current per contact is 0.2A
- Maximum voltage is 50VAC (RMS)/DC
Technical Specifications
Pitch Spacing
0.3mm
Gender
Receptacle
Contact Termination Type
Surface Mount
No. of Rows
1 Row
Contact Material
Phosphor Bronze
SVHC
No SVHC (21-Jan-2025)
No. of Contacts
33Contacts
Product Range
Easy-On 502598
Contact Position
Top, Bottom
Contact Plating
Gold Plated Contacts
FFC / FPC Thickness
0.2mm
Alternatives for 502598-3393
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
