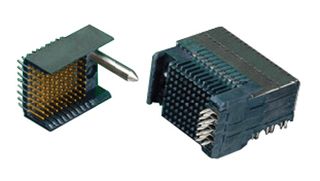

Connector, VHDM H Series, 80 Contacts, 2 mm, Header, Press Fit, 8 Rows
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No76136-9001
Newark Part No.22T8811
Product RangeVHDM H Series
Also Known AsGTIN UPC EAN: 884982238541
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Product Information
ManufacturerMOLEX
Manufacturer Part No76136-9001
Newark Part No.22T8811
Product RangeVHDM H Series
Also Known AsGTIN UPC EAN: 884982238541
Technical Datasheet
Product RangeVHDM H Series
Connector TypeBackplane
No. of Contacts80Contacts
Card Edge / Backplane Connector TypeBackplane
Pitch Spacing2mm
GenderHeader
Contact Termination TypePress Fit
No. of Rows8Rows
Row Pitch2.25mm
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Technical Specifications
Product Range
VHDM H Series
No. of Contacts
80Contacts
Pitch Spacing
2mm
Contact Termination Type
Press Fit
Row Pitch
2.25mm
Contact Plating
Gold Plated Contacts
Connector Type
Backplane
Card Edge / Backplane Connector Type
Backplane
Gender
Header
No. of Rows
8Rows
Contact Material
Copper Alloy
SVHC
To Be Advised
